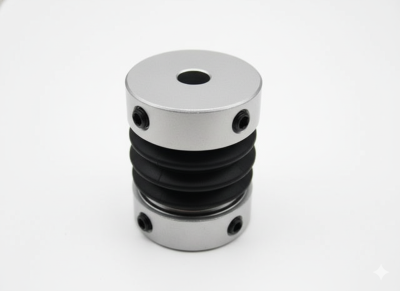

Miki Pulley Bellowflex Coupling CHP-26 6-6
āļāļģāļāļāļīāļāļēāļĒāļŠāļīāļāļāđāļēāđāļāļāļĒāđāļ
Bellowflex Coupling CHP-26 6-6
āđāļāļĢāļāļāđ: Miki Pulley
āļŦāļĄāļ§āļāļŦāļĄāļđāđ:
āļāļĢāļ°āđāļ āļāļŠāļīāļāļāđāļē,
Roller and Coupling,
Coupling,
Miki Pulley,
Others
Product description
Model : CHP-26 6-6
CHP : Series
26 : Size
6 : Bore Diameter 1 (d1)
-
6 : Bore Diameter 2 (d2)
- Outside Diameter : 26 mm
- Length : 34 mm
- Standard Bore Diameter (d1-d2) : 6-6 mm
- Normal Torque : 0.7 N.m
- Maximum Torque : 1.4 N.m
- Parallel Misalignment : 0.5 mm
- Angular Misalignment : 10°
- Axial Misalignment : Âą0.5 mm
- Maximum Rotation Speed : 7000 min-1
- Static Torsional Stiffness : 12.5 N.m/Rad
- Moment of Inertia : 2.40 x 10-6 kg.m2
- Mass : 0.026 kg
CHP : Series
26 : Size
6 : Bore Diameter 1 (d1)
-
6 : Bore Diameter 2 (d2)
- Outside Diameter : 26 mm
- Length : 34 mm
- Standard Bore Diameter (d1-d2) : 6-6 mm
- Normal Torque : 0.7 N.m
- Maximum Torque : 1.4 N.m
- Parallel Misalignment : 0.5 mm
- Angular Misalignment : 10°
- Axial Misalignment : Âą0.5 mm
- Maximum Rotation Speed : 7000 min-1
- Static Torsional Stiffness : 12.5 N.m/Rad
- Moment of Inertia : 2.40 x 10-6 kg.m2
- Mass : 0.026 kg
