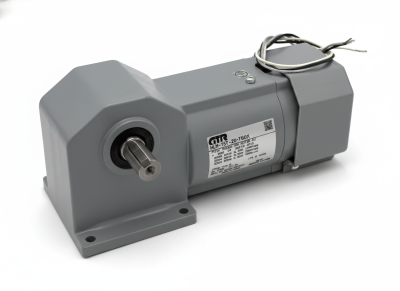

Nissei Gear Motor HLM-15T-20-T60X 40
āļāļģāļāļāļīāļāļēāļĒāļŠāļīāļāļāđāļēāđāļāļāļĒāđāļ
Gear Motor HLM-15T-20-T60X 40
āđāļāļĢāļāļāđ: Nissei
āļŦāļĄāļ§āļāļŦāļĄāļđāđ:
āļāļĢāļ°āđāļ āļāļŠāļīāļāļāđāļē,
Motor and Electrical Equipment,
Nissei,
Others
Product description
Model : HLM-15T-20-T60X 40
HL : Mounting Type, Right Angle Shaft Foot Mount
M : Motor Type, With Motor
-
15 : Output Shaft Diameter, 15 mm
T : Shaft Arrangement, Output Shaft on Both sides when Viewed from the input shaft side
-
20 : Reduction Ratio, 1/20
-
T60 : Motor Power, 3-Phase 60W
Blank : Supply Voltage, Standard Voltage
X : Special Specification
40 :
Geared Motor
- Motor Capacity : 3-Phase 60W
- Output Shaft Diameter : 15 mm
- Reduction Ratio : 1/20
- Actual Reduction Ratio : 2/41
- Output Shaft Rotation Speed (50 Hz) : 75 rpm
- Output Shaft Rotation Speed (60 Hz) : 90 rpm
- Output Shaft Allowable Torque (50 Hz) : 5.49 N.m
- Output Shaft Allowable Torque (60 Hz) : 5.49 N.m
- Output Shaft Allowable O.H.L : 539 N
- Approximate Weight : 3kg
Motor Specification :-
- Motor Type : Standard Motor
- Motor Power : 60W
- Number of Phase : 3-Phase
- Motor Specification :-
200V / 50Hz / 0.42A / 1350r/min
200V / 60Hz / 0.39A / 1550r/min
220V / 60Hz / 0.39A / 1550r/min
- Protection Structure : IP20
HL : Mounting Type, Right Angle Shaft Foot Mount
M : Motor Type, With Motor
-
15 : Output Shaft Diameter, 15 mm
T : Shaft Arrangement, Output Shaft on Both sides when Viewed from the input shaft side
-
20 : Reduction Ratio, 1/20
-
T60 : Motor Power, 3-Phase 60W
Blank : Supply Voltage, Standard Voltage
X : Special Specification
40 :
Geared Motor
- Motor Capacity : 3-Phase 60W
- Output Shaft Diameter : 15 mm
- Reduction Ratio : 1/20
- Actual Reduction Ratio : 2/41
- Output Shaft Rotation Speed (50 Hz) : 75 rpm
- Output Shaft Rotation Speed (60 Hz) : 90 rpm
- Output Shaft Allowable Torque (50 Hz) : 5.49 N.m
- Output Shaft Allowable Torque (60 Hz) : 5.49 N.m
- Output Shaft Allowable O.H.L : 539 N
- Approximate Weight : 3kg
Motor Specification :-
- Motor Type : Standard Motor
- Motor Power : 60W
- Number of Phase : 3-Phase
- Motor Specification :-
200V / 50Hz / 0.42A / 1350r/min
200V / 60Hz / 0.39A / 1550r/min
220V / 60Hz / 0.39A / 1550r/min
- Protection Structure : IP20
