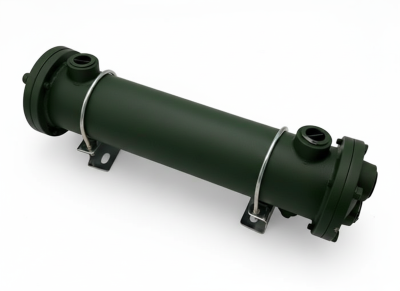

Kamui Oil Cooler SL-305W2-R
Oil Cooler SL-305W2-R
Product description
Model : SL-305W2-R
SL : Series, Fixed Tube Sheet Type / Fin Tube
-
305 : Model Number
W : Number of Passes, 4 Pass
2 : Oil Flow Rate Category, Type 2
-
R : Existence of the by-pass valve, With Valve
Specification :-
- Design Pressure, Shell Side : 0.98 MPaG
- Design Pressure, Tube Side : 0.49 MPaG
- Max. Working Temperature, Shell Side : 80°C
- Max. Working Temperature, Tube Side : 80°C
- Oil Flow Rate : 10 to 180 L/min
- Standard Paint Color : Dark Green
- Oil Port Connection : Rc3/4
- Water Port Connection : Rc3/4
- Total Length : 439 mm
- Mass : 8.5 kg
SL : Series, Fixed Tube Sheet Type / Fin Tube
-
305 : Model Number
W : Number of Passes, 4 Pass
2 : Oil Flow Rate Category, Type 2
-
R : Existence of the by-pass valve, With Valve
Specification :-
- Design Pressure, Shell Side : 0.98 MPaG
- Design Pressure, Tube Side : 0.49 MPaG
- Max. Working Temperature, Shell Side : 80°C
- Max. Working Temperature, Tube Side : 80°C
- Oil Flow Rate : 10 to 180 L/min
- Standard Paint Color : Dark Green
- Oil Port Connection : Rc3/4
- Water Port Connection : Rc3/4
- Total Length : 439 mm
- Mass : 8.5 kg
