SANWA DENKI Pressure Switch SPS-8T-C
āļāļģāļāļāļīāļāļēāļĒāļŠāļīāļāļāđāļēāđāļāļāļĒāđāļ

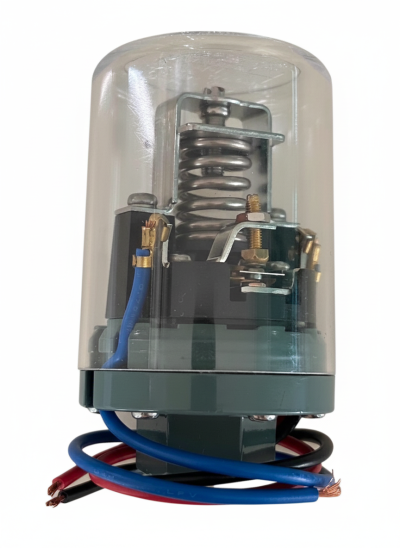

Pressure Switch SPS-8T-C
āđāļāļĢāļāļāđ: SANWA DENKI
āļŦāļĄāļ§āļāļŦāļĄāļđāđ:
āļāļĢāļ°āđāļ āļāļŠāļīāļāļāđāļē,
Instruments & Controls,
Measurement,
SANWA DENKI,
Others
Product description
Model : SPS-8T-C
ON/0.44MPa, OFF/0.37MPa, Rc3/8, ZDC2
- Category : General Purpose Pressure Switch
- Sensing Part : Stainless Steel Coupled Bellows
- Upper Limit Adjustable Set Point Range : 0.25 to 0.75 MPa
- Differential Pressure : 0.05 to 0.20 MPa
- Setting Accuracy : Âą0.015 MPa
- Proof Pressure : 2 MPa
- Set Point : ON/0.44 MPa , OFF/0.37 MPa
- Media : Air, Gas, Water, Oil
- Operating Temperature : -20 to +60°C
- Rated Power : AC250V/125V 5/10A, DC100/24V 1/5A
- Port Size : Rc3/8, (Internal Taper Pipe Thread)
- Body / Seal Material (Standard Materials) : Zinc Alloy Die-Cast (ZDC2) / NBR
- Enclosure Material : Polycarbonate (Clear Color)
- Switch Body Material : Phenol Resin
- Spring Material : SUS304
- Contact Material : Silver (Standard)
- Lead Wire Length : 0.75cm2 x 200mm
- Weight : 230g
ON/0.44MPa, OFF/0.37MPa, Rc3/8, ZDC2
- Category : General Purpose Pressure Switch
- Sensing Part : Stainless Steel Coupled Bellows
- Upper Limit Adjustable Set Point Range : 0.25 to 0.75 MPa
- Differential Pressure : 0.05 to 0.20 MPa
- Setting Accuracy : Âą0.015 MPa
- Proof Pressure : 2 MPa
- Set Point : ON/0.44 MPa , OFF/0.37 MPa
- Media : Air, Gas, Water, Oil
- Operating Temperature : -20 to +60°C
- Rated Power : AC250V/125V 5/10A, DC100/24V 1/5A
- Port Size : Rc3/8, (Internal Taper Pipe Thread)
- Body / Seal Material (Standard Materials) : Zinc Alloy Die-Cast (ZDC2) / NBR
- Enclosure Material : Polycarbonate (Clear Color)
- Switch Body Material : Phenol Resin
- Spring Material : SUS304
- Contact Material : Silver (Standard)
- Lead Wire Length : 0.75cm2 x 200mm
- Weight : 230g
