TAIHEI BOEKI Pressure Switch TCZ-1L
āļāļģāļāļāļīāļāļēāļĒāļŠāļīāļāļāđāļēāđāļāļāļĒāđāļ

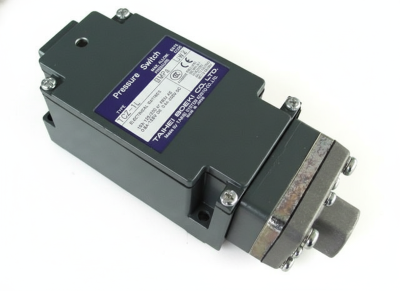

Pressure Switch TCZ-1L
āđāļāļĢāļāļāđ: TAIHEI BOEKI
āļŦāļĄāļ§āļāļŦāļĄāļđāđ:
āļāļĢāļ°āđāļ āļāļŠāļīāļāļāđāļē,
Instruments & Controls,
Measurement,
TAIHEI BOEKI,
Others
Product description
TCZ :- Type of Actuators (Diaphragm)
- :- Micro Switch (Standard)
1 :- Range Indication
L :- Pilot Lamp (100V/200V AC or DC)
- General-Purpose Pressure Switch
- Pressure Medium : Air, Water, Oil, Gases, Steam
- Actuator : Diaphragm
- Adjustable Range : 0.005 - 1 MPa
- Adjustable Dead Band (Low Range) : 0.03 - 0.2 MPa
- Adjustable Dead Band (Mid. Range) : 0.04 - 0.21 MPa
- Adjustable Dead Band (High Range) : 0.05 - 0.22 MPa
- Proof Pressure : 3 MPa
- Pressure Port Connection : Rc1/4 (PT1/4)
- Micro Switch : SPDT (1a, 1b)
- :- Micro Switch (Standard)
1 :- Range Indication
L :- Pilot Lamp (100V/200V AC or DC)
- General-Purpose Pressure Switch
- Pressure Medium : Air, Water, Oil, Gases, Steam
- Actuator : Diaphragm
- Adjustable Range : 0.005 - 1 MPa
- Adjustable Dead Band (Low Range) : 0.03 - 0.2 MPa
- Adjustable Dead Band (Mid. Range) : 0.04 - 0.21 MPa
- Adjustable Dead Band (High Range) : 0.05 - 0.22 MPa
- Proof Pressure : 3 MPa
- Pressure Port Connection : Rc1/4 (PT1/4)
- Micro Switch : SPDT (1a, 1b)
