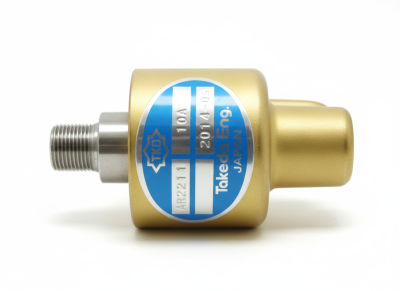

TAKEDA Rotary Joint AR2211 10A
Rotary Joint AR2211 10A
Product description
A : Classification, Standard
R : Classification, Rotary Joint
22 : Basic Type, Brass Body
1 : Type of Head Compartment, Simplex L
1 : JIS Taper Pipe Male Thread, Right-hand Screw
10A : Nominal Size, R3/8
- Nominal Size : 10A
- Fluid : Water, Hot water, Air Gas, Hydraulic Oil, Vacuum
- Max. Temperature : 100 degrees C
- Max. Pressure (Liquid) : 1.0 MPa
- Max. Pressure (Gas) : 0.7 MPa
- Max. Rotation Speed : 1500 rpm
- Net Weight : 0.84 kg.
R : Classification, Rotary Joint
22 : Basic Type, Brass Body
1 : Type of Head Compartment, Simplex L
1 : JIS Taper Pipe Male Thread, Right-hand Screw
10A : Nominal Size, R3/8
- Nominal Size : 10A
- Fluid : Water, Hot water, Air Gas, Hydraulic Oil, Vacuum
- Max. Temperature : 100 degrees C
- Max. Pressure (Liquid) : 1.0 MPa
- Max. Pressure (Gas) : 0.7 MPa
- Max. Rotation Speed : 1500 rpm
- Net Weight : 0.84 kg.
