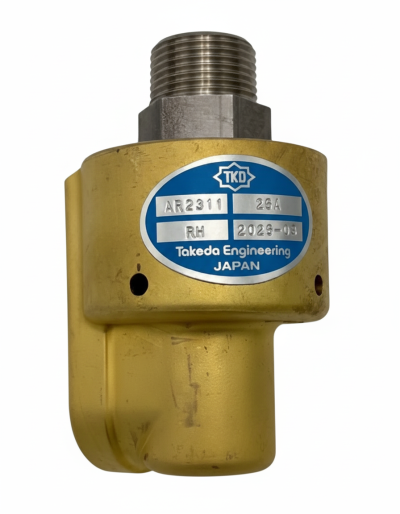

TAKEDA Rotary Joint AR2311 25A
Rotary Joint AR2311 25A
Product description
A : Classification, Standard
R : Classification, Rotary Joint
23 : Basic Type, Brass Body, Ceramic Seal
1 : Type of Head Compartment, Simplex L
1 : JIS Taper Pipe Male Thread, Right-hand Screw
25A : Nominal Size, R1
Specification :-
- Nominal Size : 25A
- Fluids : Water, Warm Water, Oil, Air, Gas
- Max. Temperature : 100 degrees C
- Max. Pressure (Fluid) : 1.8 MPaG (18.4 kgf/cm2G)
- Max. Pressure (Air, Gas) : 1.2 MPaG (12.2 kgf/cm2G)
- Max. Rotation Speed : 3000 rpm
- Net Weight : 1.80 kg.
R : Classification, Rotary Joint
23 : Basic Type, Brass Body, Ceramic Seal
1 : Type of Head Compartment, Simplex L
1 : JIS Taper Pipe Male Thread, Right-hand Screw
25A : Nominal Size, R1
Specification :-
- Nominal Size : 25A
- Fluids : Water, Warm Water, Oil, Air, Gas
- Max. Temperature : 100 degrees C
- Max. Pressure (Fluid) : 1.8 MPaG (18.4 kgf/cm2G)
- Max. Pressure (Air, Gas) : 1.2 MPaG (12.2 kgf/cm2G)
- Max. Rotation Speed : 3000 rpm
- Net Weight : 1.80 kg.
