Product description

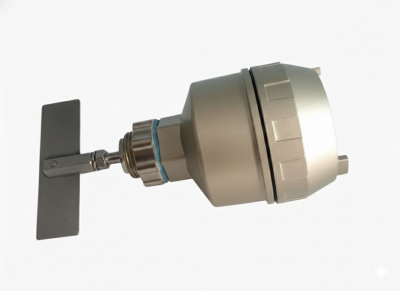

NM Series [Rotary Paddle Type]
Model : NM-SC, AC100V
Screw Joint Type, Small Hopper Level Switch
- Power Supply : AC100-110V 50/60Hz
- Power Consumption : 4W
- Contact Capacity : 250VAC 5A Resistance Load
- Rate of Rotation : 1r.p.m / 50Hz
- Allowable Temperature : Below 50°C (in a tank)
- Withstand Voltage : 1500VAC one minute for in between terminal and housing
- Detection Torque : 1470-1764 Nm x 10-4
- Allowable Pressure : 19.6 KPa
- Color : Gold
- Enclosure Rating : IP55 or equivalent
- Mounting : G1B
- Weight about : 1.1 kg
- Make the tank diameter Ã34 in mounting NM-SC.
- The outside diameter of crown nut is Ã48.
Model : NM-SC, AC100V
Screw Joint Type, Small Hopper Level Switch
- Power Supply : AC100-110V 50/60Hz
- Power Consumption : 4W
- Contact Capacity : 250VAC 5A Resistance Load
- Rate of Rotation : 1r.p.m / 50Hz
- Allowable Temperature : Below 50°C (in a tank)
- Withstand Voltage : 1500VAC one minute for in between terminal and housing
- Detection Torque : 1470-1764 Nm x 10-4
- Allowable Pressure : 19.6 KPa
- Color : Gold
- Enclosure Rating : IP55 or equivalent
- Mounting : G1B
- Weight about : 1.1 kg
- Make the tank diameter Ã34 in mounting NM-SC.
- The outside diameter of crown nut is Ã48.
