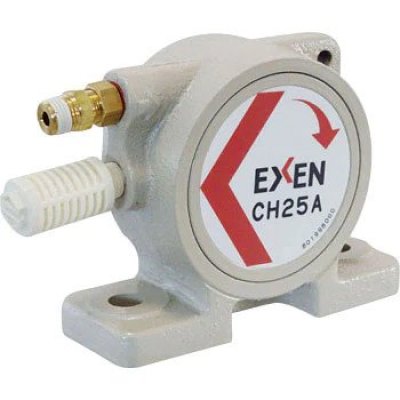

EXEN Vibrator CH25A
Vibrator CH25A
āļŦāļĄāļ§āļāļŦāļĄāļđāđ :
āļāļĢāļ°āđāļ āļāļŠāļīāļāļāđāļē
,
Motor and Electrical Equipment
,
EXEN
,
Others
āđāļāļĢāļāļāđ :EXEN
Product description
Model : CH25A
- Required Pressure To Start (Vertical) : 0.11 Mpa
- Required Pressure To Start (Horizontal) : 0.02 Mpa
For Air Pressure 0.2 Mpa
- Frequency : 110 Hz
- Centrifugal Force : 0.79 kN
- Air Consumption : 0.17 Nm3/min
For Air Pressure 0.6 Mpa
- Frequency : 164 Hz
- Centrifugal Force : 1.76 kN
- Air Consumption : 0.43 Nm3/min
- Weight : 2.6 kg
- Required Pressure To Start (Vertical) : 0.11 Mpa
- Required Pressure To Start (Horizontal) : 0.02 Mpa
For Air Pressure 0.2 Mpa
- Frequency : 110 Hz
- Centrifugal Force : 0.79 kN
- Air Consumption : 0.17 Nm3/min
For Air Pressure 0.6 Mpa
- Frequency : 164 Hz
- Centrifugal Force : 1.76 kN
- Air Consumption : 0.43 Nm3/min
- Weight : 2.6 kg
