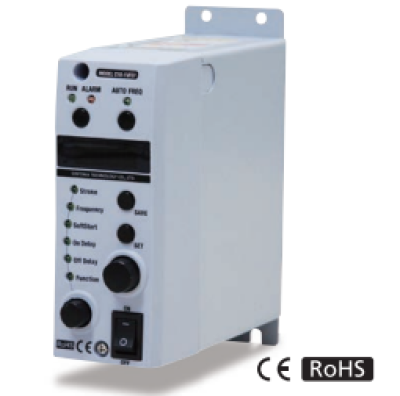

SINFONIA Controller C10-3VFEF
Controller C10-3VFEF
Product description
Model : C10-3VFEF
- Input Power Source :-
: AC100/110V±10%, 50/60 Hz
: AC200/220V±10%, 50/60 Hz
- Output Control System :-
: PWM System
- Output Voltage :-
: 0~190V (For AC200V Input)
: 0~95V (For AC100V Input) Optional Unit C10-TR Allows Output Voltage in 0~190V Range
- Output Vibration Frequency :-
: Half Wave : 45~90 Hz
: Full Wave : 90~180 Hz
: Intermediate Wave : 65~120 Hz
: High Frequency : 180~360 Hz
- Output Maximum Current :-
: 3A
- Operating Mode :-
: Constant Voltage Mode : Frequency, Output Voltage Set Manually
: Constant Amplitude Mode : Constant Amplitude Control at Set Frequency
: Auto Tuning Mode : With Frequency Auto-Tuning, Constant Amplitude Control Requires No Amplitude Setting
- Additional Features :-
: Speed Selector : Selection of Up to 4 Amplitude Settings by Means of External Signal
: Start/Stop Control : Start/Stop Control By External Signal
: Output Signal : Output Signal Synchronized to Parts Feeder Operation
: Soft Start : Start-up Time 0.2 ~ 4.0 Sec
: On/Off Delay : Delay 0.2 ~ 4.0 Secs
: Sensor Power Source : For DC12V, Max. 80A 3P Power Plug
- Synchronized Power Output :-
: Function : Power Output Synchronized to Parts Feeder Operation (RUN)
: Control System : ON/OFF Control
: Output Voltage : As Power Source Input to Controller
: Maximum Current : 2A
: Noise Tolerant Voltage : Above 1000V
- Other :-
: Ambient Temperature : 0~40 C
: Ambient Humidity : 10~90% (No Condensation)
: Weight : 1.0 kg
: Case Color : U75-700 (Japan Paint Industry Association)
- Input Power Source :-
: AC100/110V±10%, 50/60 Hz
: AC200/220V±10%, 50/60 Hz
- Output Control System :-
: PWM System
- Output Voltage :-
: 0~190V (For AC200V Input)
: 0~95V (For AC100V Input) Optional Unit C10-TR Allows Output Voltage in 0~190V Range
- Output Vibration Frequency :-
: Half Wave : 45~90 Hz
: Full Wave : 90~180 Hz
: Intermediate Wave : 65~120 Hz
: High Frequency : 180~360 Hz
- Output Maximum Current :-
: 3A
- Operating Mode :-
: Constant Voltage Mode : Frequency, Output Voltage Set Manually
: Constant Amplitude Mode : Constant Amplitude Control at Set Frequency
: Auto Tuning Mode : With Frequency Auto-Tuning, Constant Amplitude Control Requires No Amplitude Setting
- Additional Features :-
: Speed Selector : Selection of Up to 4 Amplitude Settings by Means of External Signal
: Start/Stop Control : Start/Stop Control By External Signal
: Output Signal : Output Signal Synchronized to Parts Feeder Operation
: Soft Start : Start-up Time 0.2 ~ 4.0 Sec
: On/Off Delay : Delay 0.2 ~ 4.0 Secs
: Sensor Power Source : For DC12V, Max. 80A 3P Power Plug
- Synchronized Power Output :-
: Function : Power Output Synchronized to Parts Feeder Operation (RUN)
: Control System : ON/OFF Control
: Output Voltage : As Power Source Input to Controller
: Maximum Current : 2A
: Noise Tolerant Voltage : Above 1000V
- Other :-
: Ambient Temperature : 0~40 C
: Ambient Humidity : 10~90% (No Condensation)
: Weight : 1.0 kg
: Case Color : U75-700 (Japan Paint Industry Association)
