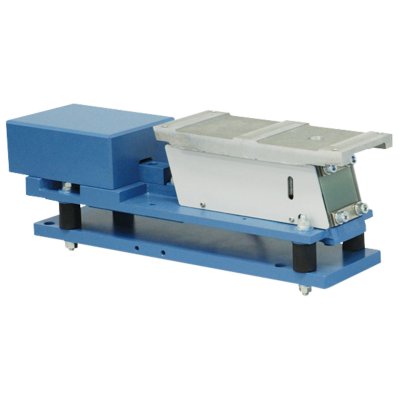

SINFONIA Linear Feeder LFG-600
Linear Feeder LFG-600
หมวดหมู่ :
ประเภทสินค้า
,
Instruments & Controls
,
Sinfonia
,
Parts Feeders
,
Linear feeders LFG Series
แบรนด์ :SINFONIA
Product description
Model : LFG-600
LINEAR FEEDER Specification
- Rated Voltage : 200 V
- Rated Current : 0.2 A
- Vibration Frequency : 80 ~ 100 Hz
- Drive Unit Weight : 7.4 kg
- Leaf-Spring Angle : 15 Degree
- Maximum Amplitude : 0.65 mm
- Compatible Controller :-
: AC200V, Single : C10-1VF / C10-1VFEF
: AC100V, Single : C10-1VF+C10-TR / C10-1VFEF+C10-TR
CHUTE Specification, Including Overhang
- Maximum Length : 600 mm
- Maximum Width : 50 mm
- Minimum Thickness : 10 mm
- Weight Range : 1.4 ~ 3.6 kg
LINEAR FEEDER Specification
- Rated Voltage : 200 V
- Rated Current : 0.2 A
- Vibration Frequency : 80 ~ 100 Hz
- Drive Unit Weight : 7.4 kg
- Leaf-Spring Angle : 15 Degree
- Maximum Amplitude : 0.65 mm
- Compatible Controller :-
: AC200V, Single : C10-1VF / C10-1VFEF
: AC100V, Single : C10-1VF+C10-TR / C10-1VFEF+C10-TR
CHUTE Specification, Including Overhang
- Maximum Length : 600 mm
- Maximum Width : 50 mm
- Minimum Thickness : 10 mm
- Weight Range : 1.4 ~ 3.6 kg
