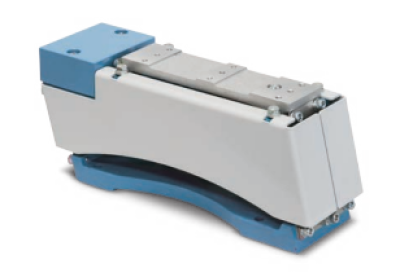

SINFONIA Linear Feeder LFBR-450B
Linear Feeder LFBR-450B
Product description
Model : LFBR-450B
LINEAR FEEDER Specification
- Rated Voltage : 200 V
- Rated Current : 0.14 A
- Vibration Frequency : 75 to 100 Hz
- Drive Unit Weight : 5.5 kg
- Leaf-Spring Angle : 15 Degree
- Maximum Amplitude : 0.65 mm
- Compatible Controller :-
: AC200V, Single : C10-1VF, C10-1VFEF
: AC200V, Twin : C9-3VFT-2C
: AC100V, Single : C10-1VF+C10-TR, C10-1VFEF+C10-TR
: AC100V, Twin : C9-3VFT-1C
CHUTE Specification, Including Overhang
- Maximum Length : 450 mm
- Maximum Width : 45 mm
- Minimum Thickness : 12 mm
- Weight Range : 1.2 to 2.3 kg
LINEAR FEEDER Specification
- Rated Voltage : 200 V
- Rated Current : 0.14 A
- Vibration Frequency : 75 to 100 Hz
- Drive Unit Weight : 5.5 kg
- Leaf-Spring Angle : 15 Degree
- Maximum Amplitude : 0.65 mm
- Compatible Controller :-
: AC200V, Single : C10-1VF, C10-1VFEF
: AC200V, Twin : C9-3VFT-2C
: AC100V, Single : C10-1VF+C10-TR, C10-1VFEF+C10-TR
: AC100V, Twin : C9-3VFT-1C
CHUTE Specification, Including Overhang
- Maximum Length : 450 mm
- Maximum Width : 45 mm
- Minimum Thickness : 12 mm
- Weight Range : 1.2 to 2.3 kg
