Nidec Potentiometer M22S10 1K
āļāļģāļāļāļīāļāļēāļĒāļŠāļīāļāļāđāļēāđāļāļāļĒāđāļ

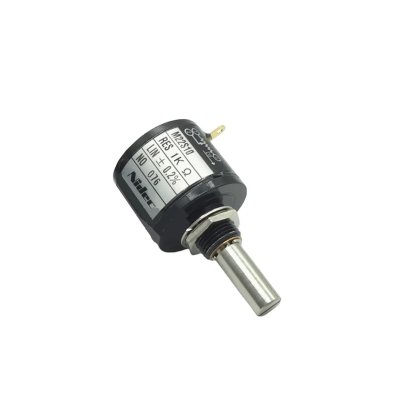

Potentiometer M22S10 1K
āđāļāļĢāļāļāđ: Nidec
āļŦāļĄāļ§āļāļŦāļĄāļđāđ:
āļāļĢāļ°āđāļ āļāļŠāļīāļāļāđāļē,
Instruments & Controls,
Measurement,
Nidec,
Others
Product description
M22S10 :- Series Name
1K :- Nominal Resistance Value (1K)
- No. of Turn : 10 Turns
- Nominal Resistance Value: 1 k
- Resistance Tolerance : Âą 5 %
- Independent Linearity : Âą0.2 %
- End Resistance, Maximum : 0.5% or 1 , Whichever is Greater
- Resistance Resolution : 0.025 %
- Rated Voltage : 44.7 V
- Rated Current : 44.7 mA
- Size : Ã 22 mm
- Shaft Diameter : 6 mm
- Effective Electrical Angle : 3600°
- Mechanical Angle : 3600° +10°
- Power Rating : 2 W
- Dielectric Strength : 1000 Vrms 1 min
- Minimum Insulation Resistance : 1000 M (at DC500 V)
- Maximum Rotational Torque : 9.81 mN.m, 100 gf.cm
- Maximum Strength of Tighten Screw : 0.98 N.m (10 kgf.cm)
- Maximum Stop Strength : 0.196 N.m (2 kgf.cm)
- Maximum Peak Noise : 20 (at 4 min-1)
- Temperature Coefficient Resistance : ¹ 50 ppm/°C
- Operating Temperature Range : -40 ~ 85 °C
- Rotational Life : 25000 Cycles
- Net Weight : Approximate 19 g
- Protection Grade : IP-40
1K :- Nominal Resistance Value (1K)
- No. of Turn : 10 Turns
- Nominal Resistance Value: 1 k
- Resistance Tolerance : Âą 5 %
- Independent Linearity : Âą0.2 %
- End Resistance, Maximum : 0.5% or 1 , Whichever is Greater
- Resistance Resolution : 0.025 %
- Rated Voltage : 44.7 V
- Rated Current : 44.7 mA
- Size : Ã 22 mm
- Shaft Diameter : 6 mm
- Effective Electrical Angle : 3600°
- Mechanical Angle : 3600° +10°
- Power Rating : 2 W
- Dielectric Strength : 1000 Vrms 1 min
- Minimum Insulation Resistance : 1000 M (at DC500 V)
- Maximum Rotational Torque : 9.81 mN.m, 100 gf.cm
- Maximum Strength of Tighten Screw : 0.98 N.m (10 kgf.cm)
- Maximum Stop Strength : 0.196 N.m (2 kgf.cm)
- Maximum Peak Noise : 20 (at 4 min-1)
- Temperature Coefficient Resistance : ¹ 50 ppm/°C
- Operating Temperature Range : -40 ~ 85 °C
- Rotational Life : 25000 Cycles
- Net Weight : Approximate 19 g
- Protection Grade : IP-40
