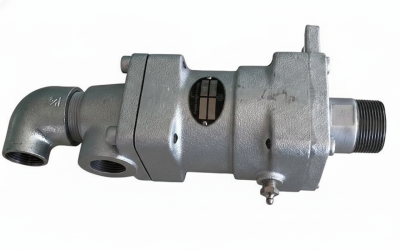

TAKEDA Rotary Joint AR1001 40A-20A

TAKEDA Rotary Joint
Model : AR1001 40A-20A

A : Classification, Standard
R : Classification, Rotary Joint
10 : Basic Type, Bellows-Fitted Flat Seal
0 : Type of Head Compartment, Duplex With Fixed Internal Pipe
1 : JIS Taper Pipe Male Thread, Right-hand Screw

40A : Nominal Size, R1 1/2
-
20A : Dimension of Internal Pipe Joint Section, Rc3/4

Specification :-
- Nominal Size : 40A
- Fluid : Water, Hot Water, Air Gas, Hydraulic Oil, Steam, Thermal Oil
- Max. Temperature : 180 degrees C
- Max. Pressure (Liquid) : 1.5 MPa
- Max. Pressure (gas) : 1.2 MPa
- Max. Rotation Speed : 300 rpm
- Net Weight : 9.7 kg.

Mfg. TAKEDA ENGINEERING CORPORATION
Made in Japan
