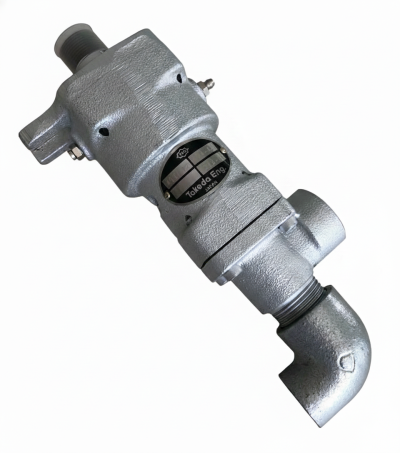

TAKEDA Rotary Joint AR1002 20A-8A

TAKEDA Rotary Joint
Model : AR1002 20A-8A

A : Classification, Standard
R : Classification, Rotary Joint
10 : Basic Type, Bellows-Fitted Flat Seal
0 : Type of Head Compartment, Duplex With Fixed Internal Pipe
2 : JIS Taper Pipe Male Thread, Left-hand Screw

20A : Nominal Size, R3/4
-
8A : Dimension of Internal Pipe Joint Section, Rc1/4

- Nominal Size : 20A
- Fluid : Water, Hot Water, Air Gas, Hydraulic Oil, Steam, Thermal Oil
- Max. Temperature : 180 degrees C
- Max. Pressure (Liquid) : 1.5 MPa
- Max. Pressure (gas) : 1.2 MPa
- Max. Rotation Speed : 300 rpm
- Net Weight : 3.7 kg.

Mfg. TAKEDA ENGINEERING CORPORATION
Made in Japan
