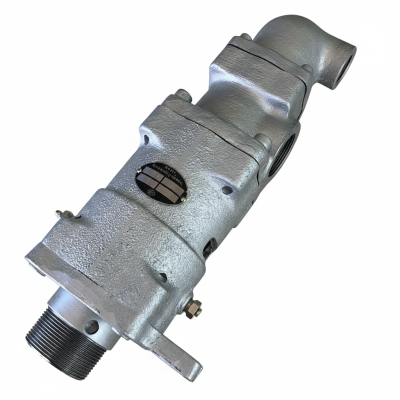

TAKEDA Rotary Joint AR1021 50A-25A

TAKEDA Rotary Joint
Model : AR1021 50A-25A

A : Classification, Standard
R : Classification, Rotary Joint
10 : Basic Type, Bellows-Fitted Flat Seal
2 : Type of Head Compartment, Duplex With Rotating Internal Pipe
1 : JIS Taper Pipe Male Thread, Right-hand Screw

50A : Nominal Size, R2
-
25A : Dimension of Internal Pipe Joint Section, 1

- Nominal Size : 50A
- Fluid : Water, Hot Water, Air Gas, Hydraulic Oil, Steam, Thermal Oil
- Max. Temperature : 180 degrees C
- Max. Pressure (Liquid) : 1.5 MPa
- Max. Pressure (gas) : 1.2 MPa
- Max. Rotation Speed : 150 rpm
- Net Weight : 14.81 kg.

Mfg. TAKEDA ENGINEERING CORPORATION
Made in Japan
