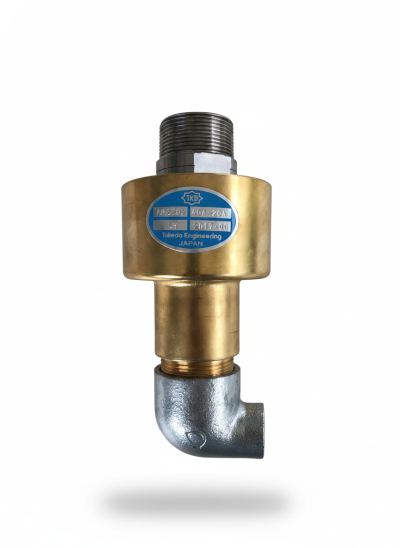

TAKEDA Rotary Joint AR2202 40A-20A

TAKEDA Rotary Joint
Model : AR2202 40A-20A

A : Classification, Standard
R : Classification, Rotary Joint
22 : Basic Type, Brass Body
0 : Type of Head Compartment, Duplex With Fixed Internal Pipe
2 : JIS Taper Pipe Male Thread, Left-hand Screw

40A : Nominal Size, R1-1/4
-
20A : Dimension of Internal Pipe Joint Section, G3/4

- Nominal Size : 40A
- Fluid : Water, Air, Oil, Chemical
- Max. Temperature : 100 degrees C
- Max. Pressure : 1.0 MPa
- Max. Rotation Speed : 1000 rpm
- Net Weight : 3.60 kg.

Mfg. TAKEDA ENGINEERING CORPORATION
Made in Japan
