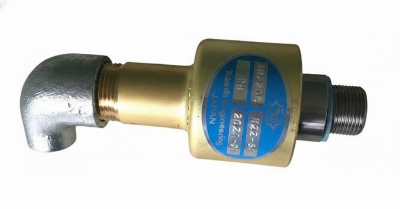

TAKEDA Rotary Joint AR2206 M22-6A

TAKEDA Rotary Joint
Model : AR2206 M22-6A

A : Classification, Standard
R : Classification, Rotary Joint
22 : Basic Type, Brass Body
0 : Type of Head Compartment, Duplex With Fixed Internal Pipe
6 : ISO METRIC Screw, Right-hand Screw

M22 : Nominal Size, P22x1.5
-
6A : Dimension of Internal Pipe Joint Section, G1/8

- Nominal Size : M22
- Fluid : Water, Hot Water, Air Gas, Hydraulic Oil, Vacuum
- Max. Temperature : 100 degrees C
- Max. Pressure (Liquid) : 1.0 MPa
- Max. Pressure (gas) : 0.7 MPa
- Max. Rotation Speed : 1500 min-1 (rpm)
- Net Weight : 1.40 kg.

Mfg. TAKEDA ENGINEERING CORPORATION
Made in Japan
