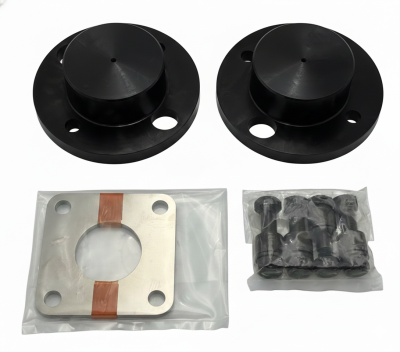

SEISA Disc Coupling DCHS14X

SEISA Disc Coupling DCHS14X

DC : Coupling Name, DC Coupling
H : Disc Element Shape, Separate Type
S : Hub Shape, Standard Shape
14 : Nominal Outside Diameter, 143 mm
X : Special Symbols, Single Type

Specification :-
- Allowable Torque : 775 (79) N-m (kgf-m)
- Maximum/Minimum Shaft Diameter : 58/0 mm
- Outside Diameter : 143 mm
- Length : 107.3 mm
- Bolt Number : 4 Pcs
- Mass : 6.9 kg
- Maximum Allowable Rotational Speed : 6,500 rpm

Mfg. SEISA Gear, Ltd.
Made in Japan
