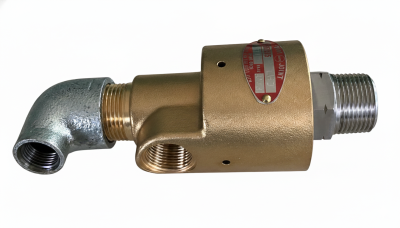

SHOWA GIKEN Rotary Joint RXE 3025 LH

SHOWA GIKEN Rotary Joint
Model : RXE 3025 LH

RXE : Line (Casing : Single, Max. Temperature : 100 C)

3 : Structure, Connection (Duplex, Stationary Internal Pipe, Thread Connection)
0 : Thread (R Thread)
25 : Size (25A)

LH : Thread Direction (Left-hand Thread)

- Rotor Thread Connection : R1
- Internal Pipe Thread  Connection : G3/8
- Thread Direction of Rotor : Left-hand Thread
- Fluid : Water, Oil
- Max. Temperature : 100 degrees C
- Max. Pressure : 2.25 MPa
- Max. Rotation Speed : 3,500 min-1
- Mass : 2.0 kg

Mfg. SHOWA GIKEN INDUSTRIAL CO., LTD.
Made in Japan
