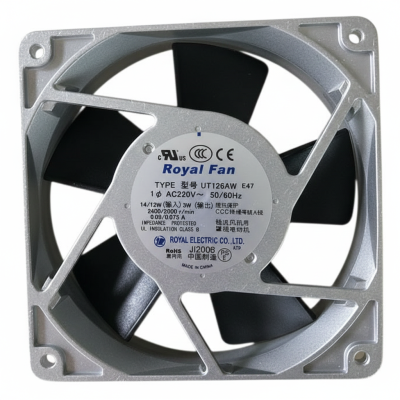

ROYAL Electric Fan UT126AW E47

ROYAL Electric Fan
High-Speed Type
Two-Terminal
Model : UT126AW E47

U : UL Standard
T
Blank : Terminal Connection Type
12 : Series Name
6 : Voltage, 220 V
A : Frame Thickness, 25 mm
Blank : Rotation Speed, High Speed Type
W : Ground Terminal, With Grounding Terminal or Frame Grounding Screw

E47 : Special Number

Specification :-
- Axial-Flow Fan
- Size : 120 mm x 120 mm x 25t
- Single Phase
- Voltage : 220 V
- Frequency : 50/60 Hz
- Power : 14/12 W
- Amp. : 0.09/0.075 A
- Speed : 2400/2800 r/min
- Air Flow : 1.9/2.2 m3/min
- Air Pressure : 44/42 Pa
- Sound Pressure Level : 39/43 dB (A)
- Weight : 0.43 kg

Mfg. : ROYAL ELECTRIC  CO., LTD.
Made in CHINA
