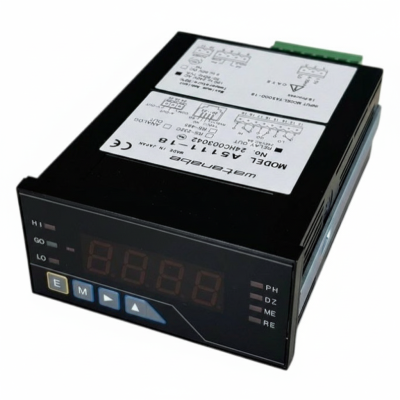

WATANABE Process Signal Meter A5111-18

WATANABE Process Signal Meter
Model : A5111-18

A5 : Universal Type Digital Panel Meter A5000 Series
1 : Power Supply, AC100 to 240V (±10%)
1 : Display Board, Single
1 : Output, HI & LO Set point
-
18 : Input, 1 to 5 V, 4 to 20 mA


Common Specification :-

Display : Main Display, Red LED 14.2 mm Height
               : Sub Display, Green LED 8 mm Height
Conversion Rate : 12.5 times/sec.
Maximum Display : 9999
Over Range Indication : When Input Exceeds the Maximum Display
                                             , Display OL or -OL
Zero Display : Leading Zero Suppression
Decimal Point : Settable to Any Digit Position
Operating Temp. : 0 t0 50°C, 35 to 85% RH
Storage Temp. : -10 to 70°C, Less Than 60% RH
Power Supply : 100 to 240 V AC±10% (AC Main Unit)
Power Consumption : Approx. 4 VA (at 100 V)
Dimensions : 96 mm (W) X 48 mm (H) X 147.5 mm (D), DIN Size
Weight : Approx. 450 g
Dielectric Strength (AC) : Power Supply/Input Terminal/Output Terminal, AC2000V/1 min.
                                              : Input Terminal/Output Terminal, DC500V/1 min.
                                              : Case/Power Supply/Input Terminal/Output Terminal, AC2000V/1 min.
Dielectric Strength (DC) : Power Supply/Input Terminal/Output Terminal, DC500V/1 min.
                                              : Input Terminal/Output Terminal, DC500V/1 min.
                                              : Case/Power Supply/Input Terminal/Output Terminal, AC2000V/1 min.
Insulation Resistance : DC500 V More Than 100 M Ohm at the above Terminal

Mfg. : WATANABE ELECTRIC INDUSTRY CO., LTD.
Made in Japan
