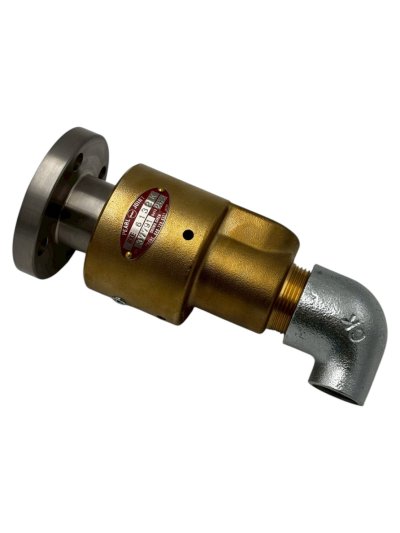

SHOWA GIKEN Rotary Joint RXE 6132K

SHOWA GIKEN Rotary Joint
Model : RXE 6132K

RXE : Line, Casing : Single, Max. Temperature : 100?

6 : Structure, Connection : Duplex, Rotational Internal Pipe, Flange Connection
1 : Flange, Fixed Flange
32 : Size, 32A
K : Option, Rotor : With Keyway

Specification :-
- Rotor Connection : Flange
- Product Size : 32A
- Internal Pipe Size : 15A
- Fluid : Water, Oil
- Max. Temperature : 100 C
- Max. Pressure : 1.67 MPa
- Max. Rotation Speed : 2,000 min-1
- Mass : 3.9 kg

Mfg. SHOWA GIKEN INDUSTRIAL CO., LTD.
Made in JAPAN
