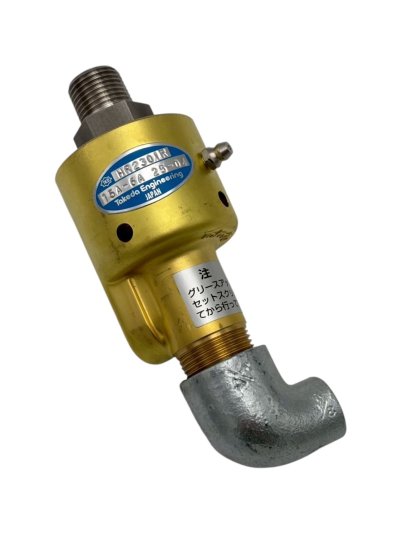

TKD Rotary Joint HR2301R 15A-6A

TKD Rotary Joint
Model : HR2301R 15A-6A

H : Classification, Semi-Standard
R : Classification, Rotary Joint
23 : Basic Type, Brass Body, Ceramic Seal
0 : Type of Head Compartment, Duplex With Fixed Internal Pipe
1 : JIS Taper Pipe Male Thread, Right-hand Screw
R : Right-hand Thread

15A : Nominal Size, 15A
-
6A : Dimension of Internal Pipe Joint Section, G1/8

Specification :-
- Connection Port (Rotation) : R1/2
- Fluids : Water, Hot Water, Air, Gas, Hydraulic Oil, Steam, Thermal Oil
- Max. Temperature : 150 degrees C
- Max. Pressure (Fluid) : 2.3 MPa
- Max. Pressure (Air, Gas) : 1.5 MPa
- Max. Rotation Speed : 3000 min-1 (rpm)
- Net Weight : 0.99 kg.

Mfg. TAKEDA ENGINEERING CORPORATION
Made in Japan
