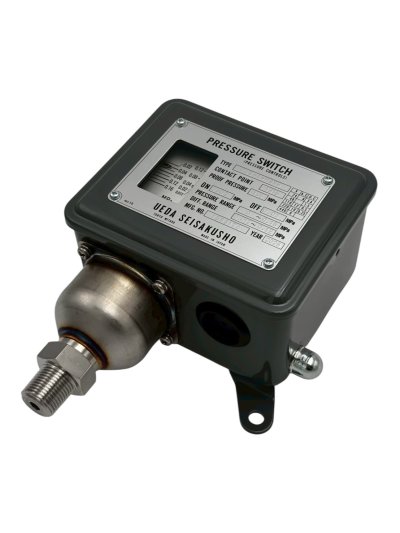

UEDA Pressure Switch P5S-1-R3SB ON/0.03MPa, OFF/0.05MPa, R3/8

UEDA Pressure Switch
Model : P5S-1-R3SB
ON/0.03MPa, OFF/0.05MPa, R3/8

P : Name (Initial Letter), Pressure Switch
5 : General-Purpose Indoor Type
S : Contact Configulation, 1a1b
-
1 : Maximum Pressure Adjustment Range, 0.16 MPa
-
R3 : Connection Port Size, R3/8
S : Bellows Housing Material, Stainless Steel (SUS306)
B : Include Mounting Bracket for The Main Unit

Specification :-
- Pressure Range : 0 to 0.16 MPa
- Opening / Closing Pressure Difference Range : Low Range / 0.012 to 0.12MPa
- Proof Pressure : 1.5 MPa
- Port Size : R3/8 (External Taper Pipe Thread)
- Pressure Setting : ON/0.03MPa, OFF/0.05MPa
- Contact Configuration : 1a1b (Single Pole, Double Throw)
- Size : 125 x 74 x 171.5 mm (W x D x H)
- Weight : Approx. 1.3 kg

Mfg. UEDA SEISAKUSHO CO., LTD.
Made In JAPAN
