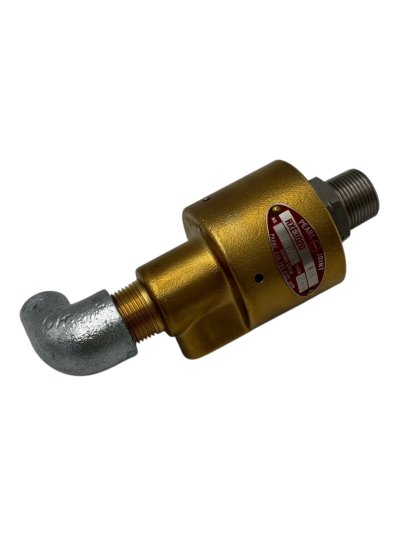

SHOWA GIKEN Rotary Joint RXE 3020 LH

SHOWA GIKEN Rotary Joint
Model : RXE 3020 LH

RXE : Line, (Casing : Single, Max. Temperature : 100 C)

3 : Structure, Connection (Duplex, Stationary Internal Pipe, Thread Connection)
0 : Thread, R Thread
20 : Size, 20A

LH : Thread Direction, Left-hand Thread

Specification :-
- Rotor Thread Connection : R3/4
- Internal Pipe Thread Connection : G1/4
- Thread Direction of Rotor : Left-hand Thread
- Fluid : Water, Oil
- Max. Temperature : 100 degrees C
- Max. Pressure : 2.25 MPa
- Max. Rotation Speed : 3,500 min-1
- Mass : 1.4 kg

Mfg. SHOWA GIKEN INDUSTRIAL CO., LTD.
Made in JAPAN
