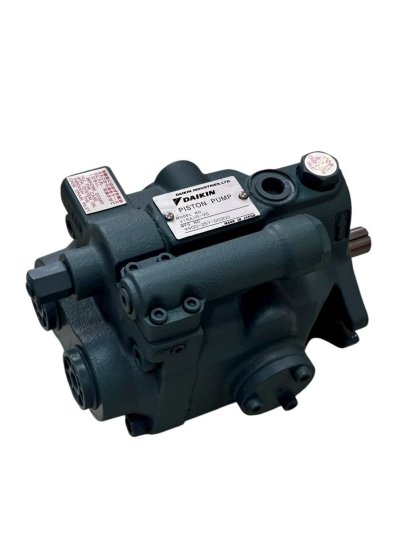

DAIKIN Piston Pump V15A1R-95

DAIKIN Piston Pump
Model : V15A1R-95

No Mark : Nomenclature of Applied Fluid, Working Oil With Petroleum Contents
-
V : Model No., V Series Piston Pump
15 : Displacement Volume, 14.8 cm3/rev
A : Control Method I, Pressure Compensator Control
1 : Pressure Adjusting Range, 0.8 to 8 MPa
R : Direction of the Rotation From the View of the Shaft end, Clockwise (Rightward)
No mark : Piping Direction, Axial Port
-
95 : Design Number, 95
No mark : Control Method III, Without Remote Control System

Specification
- Theoretical Discharge Rate : 14.8 cm3/rev
- Maximum Operating pressure : 21 MPa
- Permissible Rotational Speed : 500 to 1800 min-1
- Discharge Rate Adjustment Range : 1800 min-1 : 4.5 to 26.6 L/min
- Mass : 12.8 kg

Mfg. DAIKIN INDUSTRIES, LTD.
Made in JAPAN
