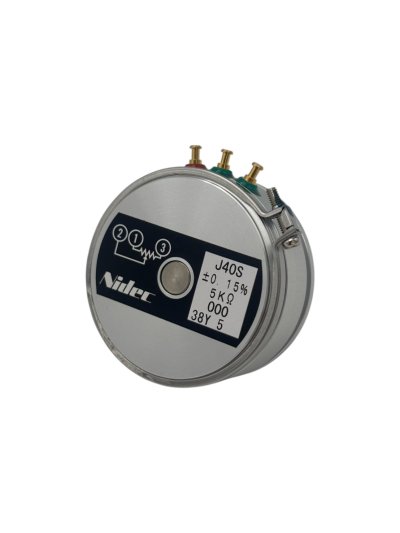

NIDEC Potentiometer J40S, 5K

NIDEC Potentiometer
Wire Wound Single Turn Type Potentiometer
Model : J40S, 5K

J40S : Series Name
5K : Nominal Resistance Value, 5KΩ
±0.15% : Independent Linearity

Specification :-
- Nominal Resistance : 5 KΩ
- Resistance Resolution : 0.07 %
- Resistance Independent Linearity : ±0.15 %
- Resistance Tolerance : ± 5 %
- Size : Ø40 mm
- Shaft Diameter : 6 mm
- Effective Electrical Angle : 350° ±1.5°
- Mechanical Angle : 360° Continuous
- Power Rating (at 40 °C) : 1 W
- Dielectric Strength : 1000 Vrms 1 min
- Minimum Insulation Resistance : 1000 MΩ (at DC500 V)
- Maximum Rotational Torque : 0.59 mN.m, 6 gf.cm
- Maximum Peak Noise : 10 Ω (4 min-1)
- Temperature Coefficient Resistance : ± 50 ppm/°C
- Operating Temperature Range : -55 ~ 85 °C
- Maximum Rotational Speed : 100 min-1
- Net Weight : Approximate 58 g
- Connecting Accuracy : ± 1° Base on No.1 Terminal
- Protection Grade : IP-40

Mfg. NIDEC COPAL ELECTRONICS CORP.
Made in JAPAN
