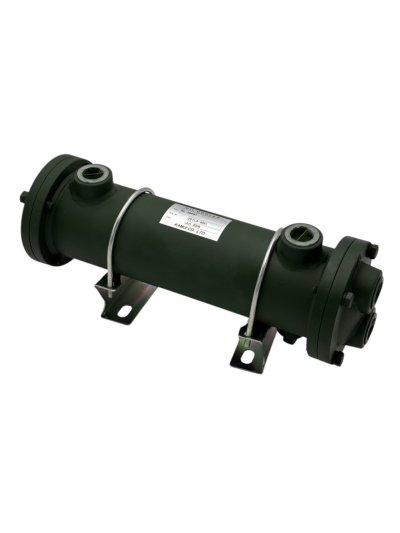

KAMUI Oil Cooler SL-304W1

KAMUI Oil Cooler
Model : SL-304W1

SL : Series, Fixed Tube Sheet Type / Fin Tube
-
304 : Model Number
W : Number of Passes, 4 Pass
1 : Oil Flow Rate Category, Type 1
-
Blank : Existence of the by-pass valve, No Valve (Standard)

Specification :-
- Design Pressure, Shell Side : 0.98 MPaG
- Design Pressure, Tube Side : 0.49 MPaG
- Max. Working Temperature, Shell Side : 80°C
- Max. Working Temperature, Tube Side : 80°C
- Oil Flow Rate : 10 to 180 L/min
- Standard Paint Color : Dark Green
- Oil Port Connection : Rc3/4
- Water Port Connection : Rc3/4
- Total Length : 367 mm
- Mass : 7.5 kg

Mfg. KAMUI CO., LTD.
Made In JAPAN
