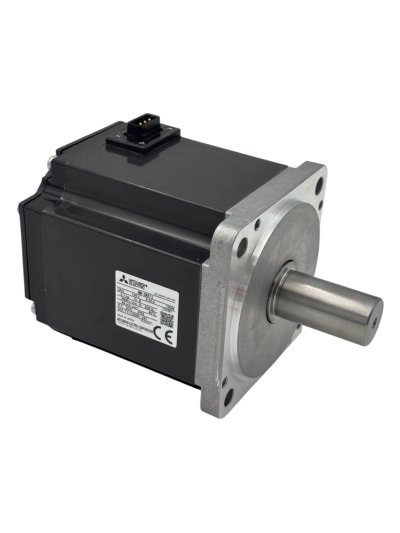

MITSUBISHI AC Servo Motor MM-GKR73

MITSUBISHI AC Servo Motor
Model : MM-GKR73

MM-GKR : Series, AC Servo Motor
7 : Rated Output, 0.75 kW
3 : Rated Speed, 3000 r/min

Specification :-
- Compatible Drive Unit : FR-E720EX-0.75K
- Power Supply Capacity : 1.3 KVA
- Rated Output : 0.75 kW
- Rated Torque : 2.4 N.m
- Maximum Torque : 4.8 N.m
- Rated Speed : 3000 r/min
- Maximum Speed : 3000 r/min
- Instantaneous Permissible Rotation Speed : 3450 r/min
- Power Rate at Continuous Constant-Torque : 46.0 kW/s
- Number of Poles : 10
- Rated Current : 3.34 A
- Maximum Current : 6.7 A
- Moment of Inertia : 1.24 x 10-4 kg.m2
- Heat Resistance Class : 130 (B)
- Protective Structure : IP65
- Mass : 2.7 kg

Mfg. MITSUBISHI ELECTRIC CORPORATION
Made in JAPAN
