Product description

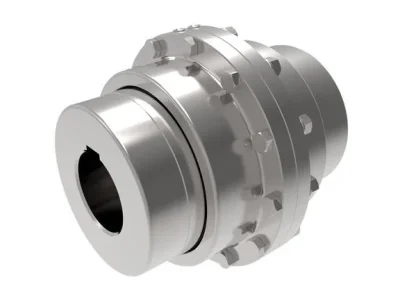

GC : Coupling Name
-
SSM : Type (Double Engagement)
180 : Size No. (180)
- Outside Diameter : 180 mm
- Maximum/Minimum Shaft Diameter : 75/32 mm
- Maximum Allowable Rotational Speed : 4000 rpm
- Reference Torque : 4730 N-m (482 kgf-m)
- Lubricant Method : Grease, 160 g
- Lubricant Method : Gear Oil, 0.18 L
- Standard Rough Bore : 30 mm
- Weight : 19 kg
-
SSM : Type (Double Engagement)
180 : Size No. (180)
- Outside Diameter : 180 mm
- Maximum/Minimum Shaft Diameter : 75/32 mm
- Maximum Allowable Rotational Speed : 4000 rpm
- Reference Torque : 4730 N-m (482 kgf-m)
- Lubricant Method : Grease, 160 g
- Lubricant Method : Gear Oil, 0.18 L
- Standard Rough Bore : 30 mm
- Weight : 19 kg
