SUNTES Posi Clamper PC-450A-01
āļāļģāļāļāļīāļāļēāļĒāļŠāļīāļāļāđāļēāđāļāļāļĒāđāļ

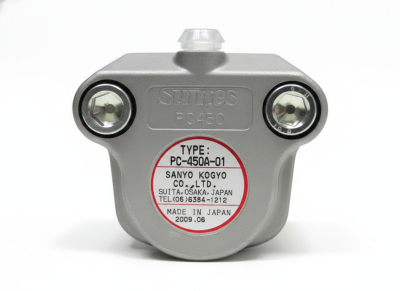

Posi Clamper PC-450A-01
āđāļāļĢāļāļāđ: SUNTES
āļŦāļĄāļ§āļāļŦāļĄāļđāđ:
āļāļĢāļ°āđāļ āļāļŠāļīāļāļāđāļē,
Clutches and Brakes,
SUNTES,
Suntes,
Clampers,
Positive Clampers
Product description
PC : Posi Clamper
-
45 : Cylinder Bore, Ã45 mm
0 : Series Number
A : Operation, Pneumatic
-
01 : Specification, Standard
- Cylinder Diameter : Ã45 mm
- Area of Cylinder : 15.90 cm2
- Usable Disc Diameter : Ã150 mm to Infinity
- Usable Disc Thickness : 10 mm
- Pad Model Type : DB-0483-K01
- Wear Allowance of Pad : 2 mm
- Working Pressure (Air) : 0.05 to 0.7 MPa
- Pad Measurement (L x W x T) : 48 x 30 x 5 mm
- Pad Surface Area : 14.07 cm2
- Tapped Hole for Mounting : M14 x Depth 21.5 mm
- Mass : 1.3 kg
-
45 : Cylinder Bore, Ã45 mm
0 : Series Number
A : Operation, Pneumatic
-
01 : Specification, Standard
- Cylinder Diameter : Ã45 mm
- Area of Cylinder : 15.90 cm2
- Usable Disc Diameter : Ã150 mm to Infinity
- Usable Disc Thickness : 10 mm
- Pad Model Type : DB-0483-K01
- Wear Allowance of Pad : 2 mm
- Working Pressure (Air) : 0.05 to 0.7 MPa
- Pad Measurement (L x W x T) : 48 x 30 x 5 mm
- Pad Surface Area : 14.07 cm2
- Tapped Hole for Mounting : M14 x Depth 21.5 mm
- Mass : 1.3 kg
