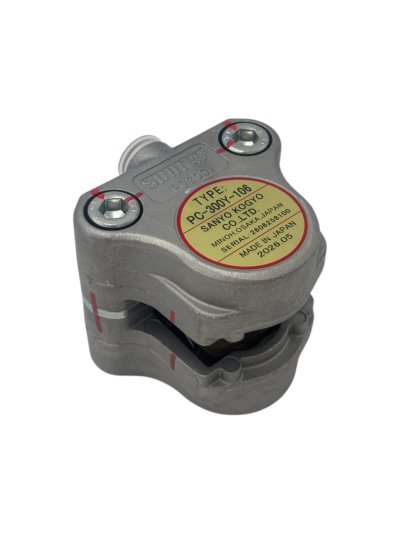

SUNTES Hydraulic Posi Clamper PC-300Y-106

SUNTES Hydraulic Posi Clamper
[Hydraulic Applied Spring Release]
Model : PC-300Y-106

PC : Posi Clamper
-
30 : Cylinder Bore, Ø30 mm
0 : Series Number
Y : Operation, Hydraulic
-
106 : Specification, Special

Specification :-
- Cylinder Diameter : Ø30mm
- Area of Cylinder : 707mm2
- Usable Disc Diameter : Ø100mm to Infinity
- Disc Thickness : 10 mm
- Pad Model Type : DB-0482-K01
- Pad Size : 32 x 20 x 5 mm
- Area of Pad : 6.10 cm2
- Wear Allowance Of Pad : 2mm
- Working Pressure : 0.1 to 5MPa (1.0 to 50 kgf/cm2)
- Fluid To Be Used : Mineral Oil
- Require Oil Volume : 0.9cc
- Air Gap : 0.5 mm
- Weight : 0.75 kg

Maintenance Parts List :-
1. Pad Kit DB-0482-K01

Mfg. SANYO SHOJI CO., LTD.
Made in JAPAN
