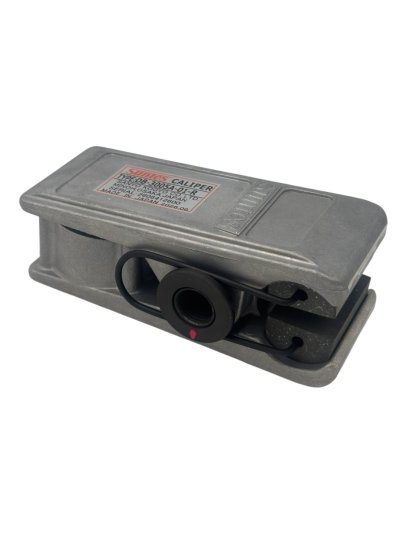

SUNTES Mini Caliper DB-3005A-01-R

SUNTES Mini Caliper
[Pneumatic Applied Spring Release]
Model : DB-3005A-01-R

DB-3005A : Series
-
01 : Pad, Standard Type
-
R : Right Hand Side

Specification :-
- Area of Cylinder : 12.6 cm2
- Working Air Pressure : 0.05 to 0.7 MPa
- Max. Working Air Pressure : 0.7 MPa
- Usable Disc Diameter : Ø100 mm to Infinity
- Disc Thickness : 6 mm
- Pad Model Type : DB-0429-K01A
- Effective Wear Allowance of Pad : 2 mm
- Lever Ratio : 1.5
- Mass : 0.7 kg

Maintenance Parts List :-
1. Pad Kit DB-0429-K01A
2. Spring B00288

Mfg. SANYO SHOJI CO., LTD.
Made in JAPAN
