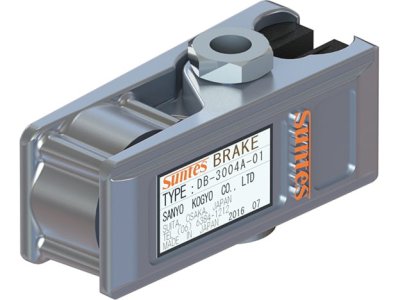

Mini Caliper DB-3004A-01-R
āđāļāļĢāļāļāđ: SUNTES
āļŦāļĄāļ§āļāļŦāļĄāļđāđ:
āļāļĢāļ°āđāļ āļāļŠāļīāļāļāđāļē,
Clutches and Brakes,
SUNTES,
Suntes,
Disc Brakes,
Mini Calipers
Product description
Model : DB-3004A-01-R
DB-3004A : Series
-
01 : Pad, Standard
-
R : Right Hand Side
- Area of Cylinder : 7.07 cm2
- Working Air Pressure : 0.05 to 0.7 MPa
- Max. Working Air Pressure : 0.7 MPa
- Usable Disc Diameter : Ã100 mm to Infinity
- Disc Thickness : 6 mm
- Pad Model Type : DB-0428-K01A
- Effective Wear Allowance of Pad : 2 mm
- Lever Ratio : 1.5
- Mass : 0.4 kg
DB-3004A : Series
-
01 : Pad, Standard
-
R : Right Hand Side
- Area of Cylinder : 7.07 cm2
- Working Air Pressure : 0.05 to 0.7 MPa
- Max. Working Air Pressure : 0.7 MPa
- Usable Disc Diameter : Ã100 mm to Infinity
- Disc Thickness : 6 mm
- Pad Model Type : DB-0428-K01A
- Effective Wear Allowance of Pad : 2 mm
- Lever Ratio : 1.5
- Mass : 0.4 kg
