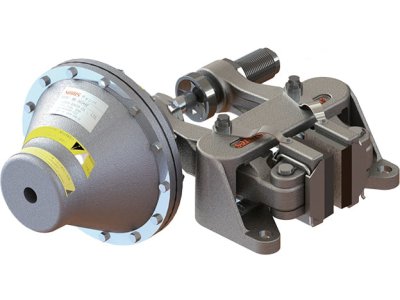

SUNTES Pneumatic Disc Brake DB-3010AF-01-R
āļāļģāļāļāļīāļāļēāļĒāļŠāļīāļāļāđāļēāđāļāļāļĒāđāļ
Pneumatic Disc Brake DB-3010AF-01-R
āđāļāļĢāļāļāđ: SUNTES
āļŦāļĄāļ§āļāļŦāļĄāļđāđ:
āļāļĢāļ°āđāļ āļāļŠāļīāļāļāđāļē,
Clutches and Brakes,
SUNTES,
Suntes,
Disc Brakes,
Pneumatic Disc Brakes
Product description
DB-3010AF : Series
-
Omit : Compatible Pads, Standard Type
-
01 : Mounting / Pressing Force Type, Horizon Shaft Mounting
-
R : Right Hand Side
- Area of Cylinder : 110.0 cm2
- Release Air Pressure : 0.57 to 0.7 MPa
- Usable Disc Diameter : Ã200 mm to Infinity
- Applicable Disc Thickness : 10 to 10.4 mm
- Pad Kit : DB-0433-K01E
- Effective Wear Allowance for Pad : 7 mm
- Lever Ratio : 1.83
- Weight : 12 kg
-
Omit : Compatible Pads, Standard Type
-
01 : Mounting / Pressing Force Type, Horizon Shaft Mounting
-
R : Right Hand Side
- Area of Cylinder : 110.0 cm2
- Release Air Pressure : 0.57 to 0.7 MPa
- Usable Disc Diameter : Ã200 mm to Infinity
- Applicable Disc Thickness : 10 to 10.4 mm
- Pad Kit : DB-0433-K01E
- Effective Wear Allowance for Pad : 7 mm
- Lever Ratio : 1.83
- Weight : 12 kg
