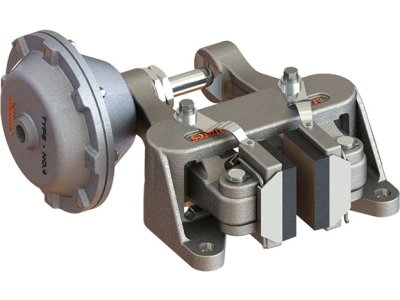

SUNTES Pneumatic Disc Brake DB-3010A-5-01-R
Pneumatic Disc Brake DB-3010A-5-01-R
หมวดหมู่ :
ประเภทสินค้า
,
Clutches and Brakes
,
SUNTES
,
Suntes
,
Disc Brakes
,
Pneumatic Disc Brakes
แบรนด์ :SUNTES
Product description
DB-3010A : Series
-
Omit : Compatible Pads, Standard Type
-
5 : Chamber Size, 5 Inch
-
01 : Brake Body Mounting Direction, Standard Direction
-
R : Right Hand Side
- Chamber Size : 5 Inch
- Area of Cylinder : 110 cm2
- Usable Disc Diameter : Ø200 mm to Infinity
- Applicable Disc Thickness : 10 to 10.4 mm
- Pad Kit : DB-0433-K01E
- Effective Wear Allowance for Pad : 7 mm
- Lever Ratio : 1.83
- Weight : 7.8 kg
-
Omit : Compatible Pads, Standard Type
-
5 : Chamber Size, 5 Inch
-
01 : Brake Body Mounting Direction, Standard Direction
-
R : Right Hand Side
- Chamber Size : 5 Inch
- Area of Cylinder : 110 cm2
- Usable Disc Diameter : Ø200 mm to Infinity
- Applicable Disc Thickness : 10 to 10.4 mm
- Pad Kit : DB-0433-K01E
- Effective Wear Allowance for Pad : 7 mm
- Lever Ratio : 1.83
- Weight : 7.8 kg
