SUNTES Air Hydraulic Booster DB-3233A-03
āļāļģāļāļāļīāļāļēāļĒāļŠāļīāļāļāđāļēāđāļāļāļĒāđāļ

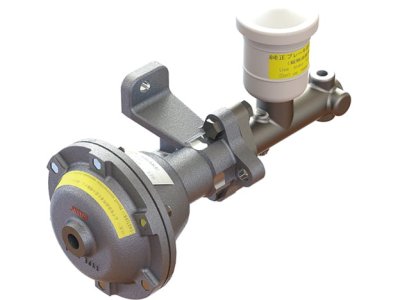

Air Hydraulic Booster DB-3233A-03
āđāļāļĢāļāļāđ: SUNTES
Product description
DB-3233A : Series, Air Hydraulic Booster (Pneumatically Operated Type)
-
0 : Hydraulic Oil, Brake Fluid (DOT3)
3 : Installation, Floor-standing Type
Specification :-
- Oil to be Used : Brake Oil (Vegetable Oil)
- Master Cylinder : 3/4B x 24ST (DB-2203MS-01)
- Discharge Oil Volume : 5 cc
- Working Air Pressure : 0.05 to 0.7 MPa (0.5 to 7 kgf/cm2)
- Boost Ratio : 10
- Working Fluid And Air Temperature : 0 to 50 °C
- Working Ambient Temperature : -20 to 60 °C
- Vibration Resistance : 3G
-
0 : Hydraulic Oil, Brake Fluid (DOT3)
3 : Installation, Floor-standing Type
Specification :-
- Oil to be Used : Brake Oil (Vegetable Oil)
- Master Cylinder : 3/4B x 24ST (DB-2203MS-01)
- Discharge Oil Volume : 5 cc
- Working Air Pressure : 0.05 to 0.7 MPa (0.5 to 7 kgf/cm2)
- Boost Ratio : 10
- Working Fluid And Air Temperature : 0 to 50 °C
- Working Ambient Temperature : -20 to 60 °C
- Vibration Resistance : 3G
