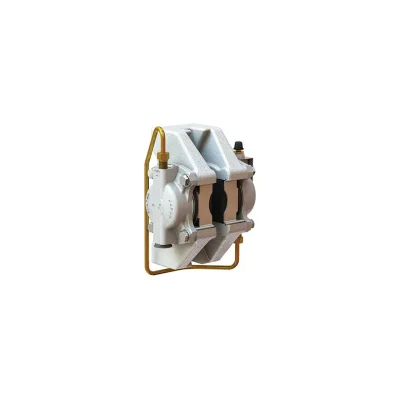

SUNTES Hydraulic Disc Brake DB-2021BB-2 1/8L
āļāļģāļāļāļīāļāļēāļĒāļŠāļīāļāļāđāļēāđāļāļāļĒāđāļ

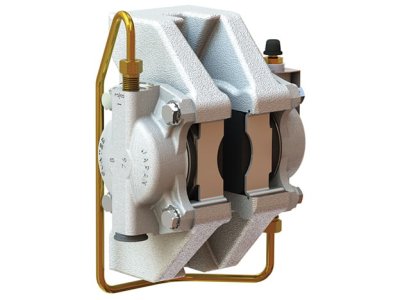

Hydraulic Disc Brake DB-2021BB-2 1/8L
āđāļāļĢāļāļāđ: SUNTES
āļŦāļĄāļ§āļāļŦāļĄāļđāđ:
āļāļĢāļ°āđāļ āļāļŠāļīāļāļāđāļē,
Clutches and Brakes,
SUNTES,
Suntes,
Disc Brakes,
Hydraulic Disc Brakes
Product description
DB-2021 : Basic Model
B : Disk Thickness, 10.4 mm
B : Oil Classification, Brake Oil
2 1/8 : Cylinder Size, 2 1/8
L : Oil Inlet, Left Side
- Size of Cylinder : 2 1/8
- Area of Cylinder : 22.88 cm2
- Usable Disc Diameter : Ã222 ~ 700 mm
- Disc Thickness : 10.4 mm
- Pad Model Type : DB-0400-K01A
- Wear Allowance Of Pad (mm) : 10 mm
- Max. Working Oil Pressure : 5 MPa (50kgf/cm2)
- Required Oil Volume : 2.5 cc
- Mass : 4.4 kg
- Oil to be Used : Brake Oil
- Left Hand Side
B : Disk Thickness, 10.4 mm
B : Oil Classification, Brake Oil
2 1/8 : Cylinder Size, 2 1/8
L : Oil Inlet, Left Side
- Size of Cylinder : 2 1/8
- Area of Cylinder : 22.88 cm2
- Usable Disc Diameter : Ã222 ~ 700 mm
- Disc Thickness : 10.4 mm
- Pad Model Type : DB-0400-K01A
- Wear Allowance Of Pad (mm) : 10 mm
- Max. Working Oil Pressure : 5 MPa (50kgf/cm2)
- Required Oil Volume : 2.5 cc
- Mass : 4.4 kg
- Oil to be Used : Brake Oil
- Left Hand Side
