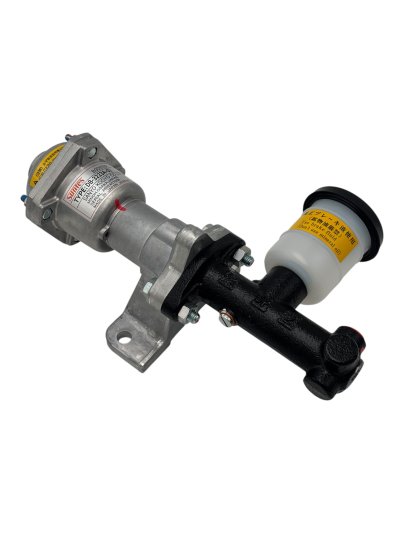

SUNTES Air Hydraulic Booster DB-3223A-02

SUNTES Air Hydraulic Booster
[Air Applied Spring Released]
Model : DB-3223A-02, New Version

DB-32 : Air Hydraulic Booster, Pneumatically Operated Type
2 : Chamber Size, 2 Inch
3 : Master Cylinder Type, DB-2203
A : Air Applied Spring Released
-
0 : Hydraulic Oil, Brake Fluid (DOT3)
2 : Installation, Wall-mounted Type

Specification :-
- Master Cylinder : 3/4B x 24ST (DB-2203MS-01)
- Oil to be Used : Brake Oil (DOT3)
- Discharge Oil Volume : 5 cm3
- Working Air Pressure : 0.05 to 0.69 MPa
- Boost Ratio : 5
- Mass : 1.7 kg

Maintenance Parts List :-
1. 2 Inch Chamber Assembly DB-3723A-01
2. 2 Inch Diaphragm B00423-00
3. Master Cylinder DB-2203MS-01
4. Piston Kit DB-0703-01
5. Tank Assembly DB-0312-22

Mfg. SANYO SHOJI CO., LTD.
Made in Japan
