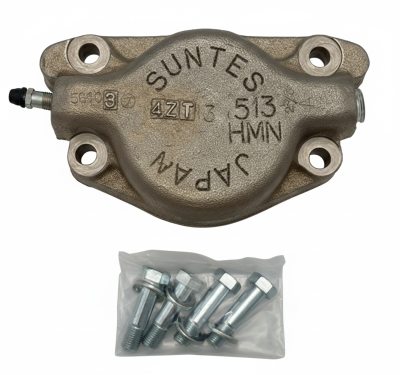

SUNTES Cylinder Assembly DB-0651A-2 5/8B-01

SUNTES Cylinder Assembly
Model : DB-0651A-2 5/8B-01
DRG NO. SB04782 REV 3

Consists of Parts :-
1. Cylinder Assy : 221-8117, 1 Pc
2. Cylinder Bolt : 213-1840, 4 Pcs
3. Spring Washer : 113-4610, 4 Pcs

Specification :-
- Cylinder Size : 2 5/8 Inch
- Cylinder Area : 34.89 cm2
- Retraction Amount : 0.4 to 0.8 mm
- Oil to be Used : Brake Oil (Vegetable Oil)
- Regular Maximum Working of Pressure : 9.81 MPa
- Applicable Brake Model : DB-2051B-2 5/8
- A-Side
- Weight : 4.5 kg

Spare Parts List
1. Seal Kit : DB-2085-2/58B
2. Bleeder Kit : 226-9120
3. Cylinder Bolt Kit : SB05103

Mfg. SANYO SHOJI CO., LTD.
Made in Japan
