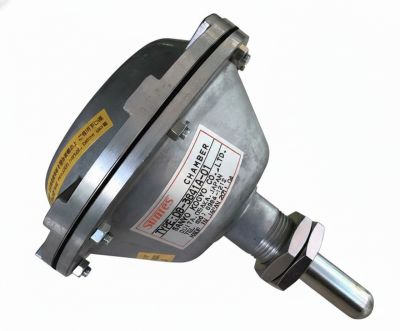

SUNTES 4 Inch Air Chamber Assembly DB-3641A-01

SUNTES 4 Inch Air Chamber Assembly
For Pneumatic Disc Brake
Model : DB-3641A-01

Specification :-
- Size : 4 Inch
- Outer Diameter : Ø141.5 mm
- Mass : 1.3 kg

Applicable Model :-
DB-3010A-4-01-L
DB-3010A-4-01-R
DB-3010A-4-11-L
DB-3010A-4-11-R
DB-3010A-01B-4-01-L
DB-3010A-01B-4-01-R
DB-3010A-01B-4-11-L
DB-3010A-01B-4-11-R
DB-3010A-01C-4-01-L
DB-3010A-01C-4-01-R
DB-3010A-01C-4-11-L
DB-3010A-01C-4-11-R

DB-3034A-4-01-L
DB-3034A-4-01-R
DB-3034A-01B-4-01-L
DB-3034A-01B-4-01-R
DB-3034A-01C-4-01-L
DB-3034A-01C-4-01-R

Maintenance Parts List :-
1. 4 Inch Diaphragm B00365-01

Mfg. SANYO SHOJI CO., LTD.
Made in Japan
