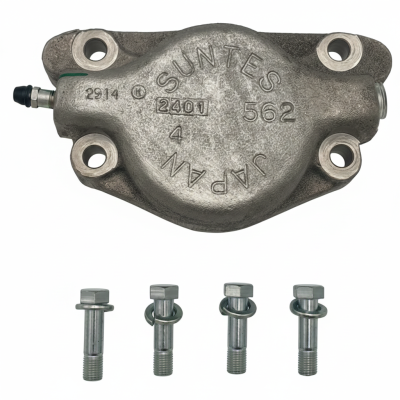

SUNTES Cylinder Assembly DB-0651A-3 1/4K-01

SUNTES Cylinder Assembly
Model : DB-0651A-3 1/4K-01
DRG NO. SB04788 REV 3

Consists of Parts :-
1. Cylinder Assy : 221-8627, 1 Pc
2. Cylinder Bolt : 213-1840, 4 Pcs
3. Spring Washer : 113-4610, 4 Pcs

Specification :-
- Cylinder Size : 3 1/4 Inch
- Cylinder Area : 53.49 cm2
- Retraction Amount : 0.4 to 0.8 mm
- Oil to be Used : Mineral Oil
- Regular Maximum Working of Pressure : 9.81 MPa
- Applicable Brake Model : DB-2051K-3 1/4
- A-Side
- Weight : 4.4 kg

Spare Parts List
1. Seal Kit : DB-2085-3 1/4K

Mfg. SANYO SHOJI CO., LTD.
Made in Japan
