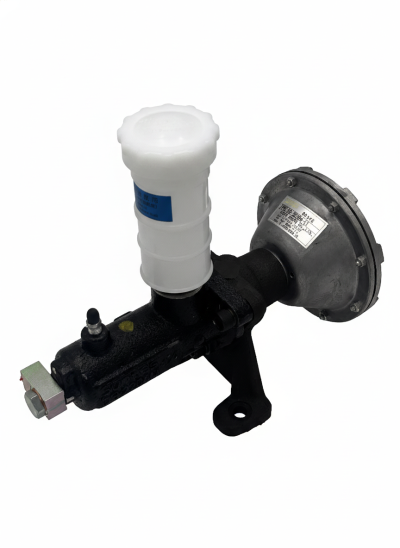

SUNTES Air Hydraulic Booster DB-3246A-11

SUNTES Air Hydraulic Booster
[Air Applied Spring Released]
Model : DB-3246A-11

DB-3246A : Series
-
11 : Fluid to be Used, Mineral Oil

- Fluid to be Used : Mineral Oil (ISO VG32)
- Discharge Port : M10 P1.25
- Discharge Port Pipe Nut : DM
- Discharge Oil Volume : 19.4 cc
- Working Air Pressure : 0.05 to 0.69 MPa
- Boost Ratio : 7.6
- Mounting Surface : Floor Surface
- Master Cylinder : 1 1/4B*35ST (DB-2206MS-11)
- Mass : 5.5 kg

Maintenance Parts List :-
1. 4” Air Chamber Assembly : DB-3746A-01
2. Master Cylinder : DB-2206MS-11
3. Tank Assembly : DB-0312-13
4. Piston Kit : DB-0706-11
5. 4” Diaphragm : B00365-02

Mfg. SANYO SHOJI CO., LTD.
Made in Japan
