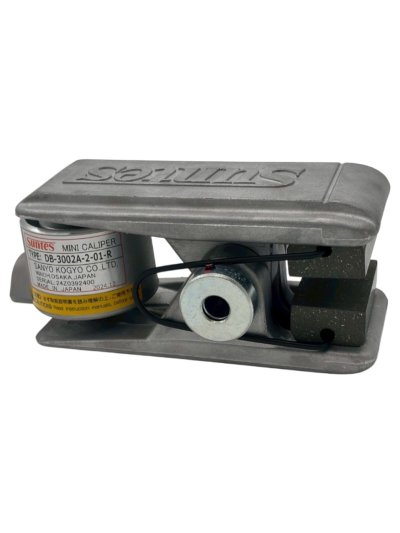

SUNTES Mini Caliper DB-3002A-2-01-R

SUNTES Mini Caliper
[Pneumatic Applied Spring Release]
Model : DB-3002A-2-01-R

DB-3002A : Series
-
2 : Cylinder Size, 2B
-
01 : Pad, Standard Type
-
R : Right Hand Side

Specification :-
- Area of Cylinder : 19.6 cm2
- Working Air Pressure : 0.05 to 0.7 MPa
- Max. Working Air Pressure : 0.7 MPa
- Usable Disc Diameter : Ø150 mm to Infinity
- Disc Thickness : 10 to 10.4 mm
- Pad Model : DB-0430-K01A
- Effective Wear Allowance of Pad : 5 mm
- Lever Ratio : 1.75
- Mass : 1.3 kg

Spare Part List :-
1. Cylinder Assembly : DB-3602A-02
2. Brake Pad : DB-0430-K01A
3. Spring : B00193

Mfg. SANYO SHOJI CO., LTD.
Made in Japan
