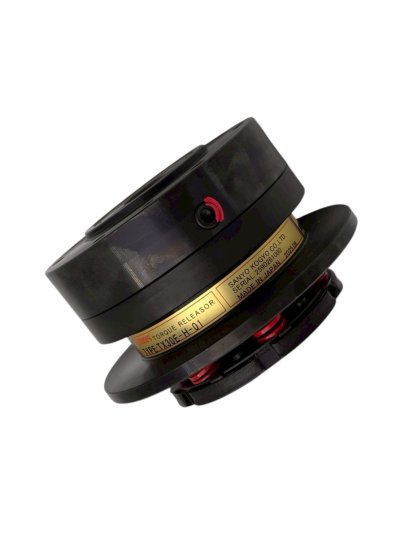

SUNTES Torque Releaser TX30E-H-01

SUNTES Torque Releaser
[Ball Clutch / Continuous Reset Type]
Model : TX30E-H-01

TX : Torque Releaser Mechanism, Ball Clutch / Continuous Reset Type
30 : Maximum Shaft Hole Size, 30mm
E : Type of Installation, Flange Type
-
H : Spring, Red x 6
-
01 : Prepare Hole Diameter, 19mm

Specification :-
- Torque Range : 33 to 170 N.m
- Spring Color x NO : Red x 6
- Maximum Speed : 600 min-1
- Inertia Moment : 5.1x10-3 kg.cm2
- Weight : 4.0 kg
- Maximum Hole Diameter : 30 mm
- Prepare Hole Diameter : 19 mm
- Set Screw : 2-M4
- Release Dimension : 2.6 mm

Mfg. SANYO SHOJI CO., LTD.
Made in Japan
