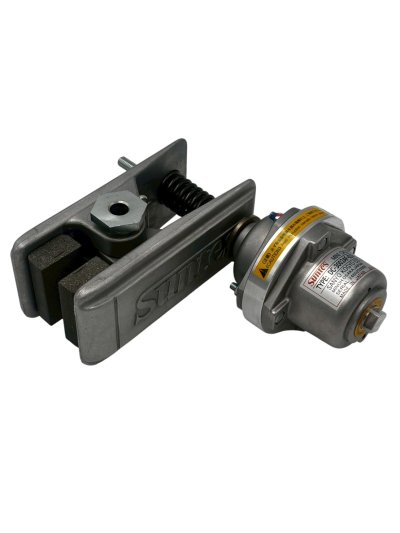

SUNTES Pneumatic Clamper DC-3002AF-01R

SUNTES Pneumatic Clamper
[Spring Applied Pneumatic Release]
Model : DC-3002AF-01R

Specification :-
- Right Hand Side
- Area of Cylinder : 15.3 cm2
- Release Air Pressure : 0.47 to 0.7 MPa
- Usable Disc Diameter : Ø150 mm to Infinity
- Disc Thickness : 10.4 mm
- Pad Model Type : DB-0430-K01D
- Effective Wear Allowance of Pad : 2 mm
- Lever Ratio : 1.7
- Mass : 2.0 kg

Spare Part List
1. Pad Assy : DB-0430-K01D
2. Actuator Assy : SB06354

Mfg. SANYO SHOJI CO., LTD.
Made in JAPAN
