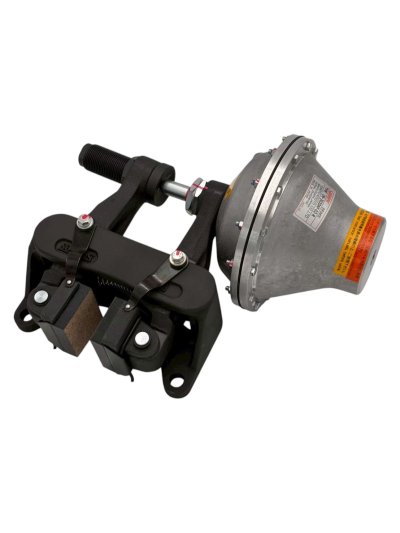

SUNTES SA Pneumatic Disc Brake DB-3020AF-02-R

SUNTES SA Pneumatic Disc Brake
[Spring Applied Pneumatic Release]
Model : DB-3020AF-02-R

DB-3020AF : Series
-
Omit : Compatible Pads, Standard Type
-
02 : Mounting / Pressing Force Type, Horizon Shaft Mounting
-
R : Right Hand Side

Specification :-
- Area of Cylinder : 110.0 cm2
- Release Air Pressure : 0.31 to 0.7 MPa
- Usable Disc Diameter : Ø200 mm to Infinity
- Applicable Disc Thickness : 20 mm
- Pad Kit : DB-0433-K01E
- Effective Wear Allowance for Pad : 7 mm
- Lever Ratio : 1.83
- Weight : 12.5 kg

Spare Part List :-
- Chamber Assembly : DB-3651AF-02
- 5 Inch Diaphragm : B00366-02
- Pad Kit : DB-0433-K01E
- Pad Shoe Kit : SB05288
- Parallel Plate Kit : SB01882-00

Mfg. SANYO SHOJI CO., LTD.
Made in Japan
