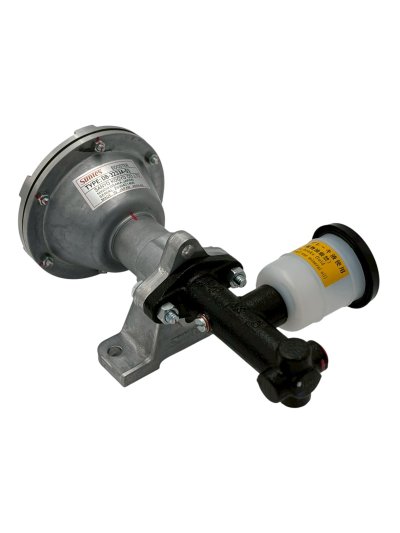

SUNTES Air Hydraulic Booster
Model : DB-3233A-01
(New Version)
DB-32 : Air Hydraulic Booster, Pneumatically Operated Type
3 : Chamber Size, 3 Inch
3 : Master Cylinder Type, DB-2203
A : Air Applied Spring Released
0 : Hydraulic Oil, Brake Fluid (DOT3)
1 : Installation, Wall-mounted Type
Specification :-
- Oil to be Used : Brake Oil (Vegetable Oil)
- Master Cylinder : 3/4B x 24ST (DB-2203MS-01)
- Discharge Oil Volume : 5 cm3
- Working Air Pressure : 0.05 to 0.69 MPa
- Boost Ratio : 10
- Working Fluid And Air Temperature : 0 to 50 °C
- Working Ambient Temperature : -20 to 60 °C
- Vibration Resistance : 3G
- Mass : 2.0 kg
Spare Part List :-
1. 3 Inch Chamber Assembly DB-3733A-01
2. 3 Inch Chamber Assembly DB-3733A-01 + Bracket
3. 3 Inch Diaphragm B00364-02
4. Master Cylinder DB-2203MS-01
5. Piston Kit DB-0703-01
6. Tank Assembly DB-0312-22
Mfg. SANYO SHOJI CO., LTD.
Made in JapanSUNTES Air Hydraulic Booster
Model : DB-3233A-01
(New Version)
DB-32 : Air Hydraulic Booster, Pneumatically Operated Type
3 : Chamber Size, 3 Inch
3 : Master Cylinder Type, DB-2203
A : Air Applied Spring Released
0 : Hydraulic Oil, Brake Fluid (DOT3)
1 : Installation, Wall-mounted Type
Specification :-
- Oil to be Used : Brake Oil (Vegetable Oil)
- Master Cylinder : 3/4B x 24ST (DB-2203MS-01)
- Discharge Oil Volume : 5 cm3
- Working Air Pressure : 0.05 to 0.69 MPa
- Boost Ratio : 10
- Working Fluid And Air Temperature : 0 to 50 °C
- Working Ambient Temperature : -20 to 60 °C
- Vibration Resistance : 3G
- Mass : 2.0 kg
Spare Part List :-
1. 3 Inch Chamber Assembly DB-3733A-01
2. 3 Inch Chamber Assembly DB-3733A-01 + Bracket
3. 3 Inch Diaphragm B00364-02
4. Master Cylinder DB-2203MS-01
5. Piston Kit DB-0703-01
6. Tank Assembly DB-0312-22
Mfg. SANYO SHOJI CO., LTD.
Made in Japan
