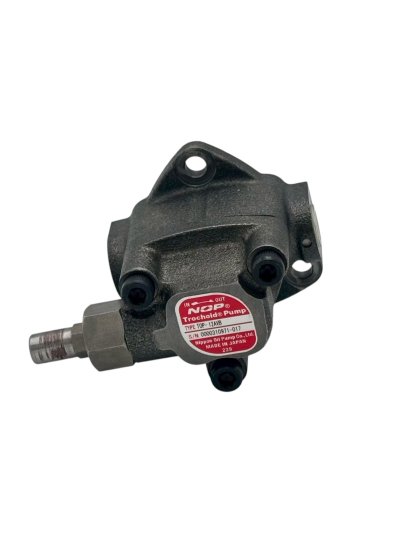

NIPPON OIL PUMP Trochoid Pump TOP-12AVB

NIPPON OIL PUMP Trochoid Pump
Model : TOP-12AVB

1A : Pump Head Series, 1A
2 : Pump Model, 12A
Non : Rotation Direction, Counter-Clockwise Rotation as seen from the end of shaft (Standard Rotation Direction)
VB : Relief Valve, With Relief Valve VB

Specification :-
- Theoretical Displacement : 2.5 cm3/rev
- Theoretical Discharge @1500 rpm : 3.7 l/min
- Theoretical Discharge @1800 rpm : 4.5 l/min
- Max. Discharge Pressure : 0.5 MPa
- Max. Revolution : 1800min-1
- Inlet/Outlet Port Connection : Rc1/4
- Approx. Weight : 0.9 kg

Mfg. NIPPON OIL PUMP CO., LTD.
Made in Japan
